F0500STD

(Ratios = 1:1,1.824:1,3.039:1,4.012:1)
(Input Shaft Diameter = 1.250” - Output Shaft Diameter = 1.250”)

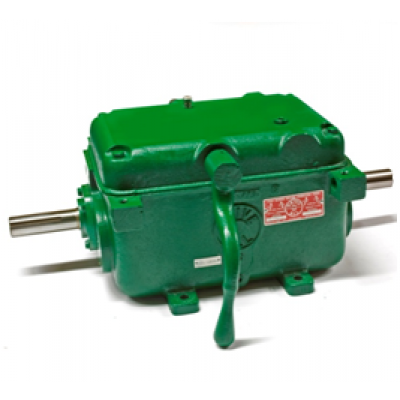

The F0500STD is less than 9” tall and is designed to fit in to smaller spaces. This model is assembled with a close grain cast iron housing and is capable of transmitting up to 5 horsepower at 1800 rpm. The F0500STD offers 4 different speeds and the ability to attach the handle to either side. The shafts of the F0500STD rotate in the same direction and the unit can be utilized as an increaser or reducer. If you would like additional information about the F0500STD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at: www.driveallmfg.com

Previous applications include: Mining Industry, Fabric Winding, Turn Table Machinery, and Wire Winding


Weight: 130.00 LBS
$3,824.65

F0500STD

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

0.56

576

200

1.11

554

300

1.67

533

400

2.22

511

500

2.78

490

600

3.34

468

700

3.89

450

800

4.45

405

900

5.00

360

1000

5.00

330

1100

5.00

300

1200

5.00

275

1300

5.00

250

1400

5.00

230

1500

5.00

210

1600

5.00

202

1700

5.00

193

1800

5.00

185

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
