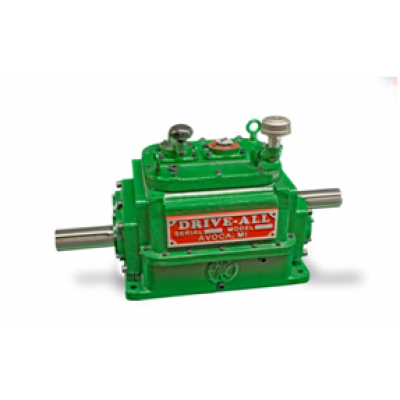

S0004

The S0004 Series is the most popular size of the Hi-Torque family of Drive-All Gearboxes. This gearbox offers a split housing, a parallel shaft configuration, and the ability to be an increaser or reducer. It also offers design flexibility with it wide horsepower capability range. The S0004 is considered a custom design unit and can provide 1 to 4 different speeds. If you would like additional information about the S0004 please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at: www.driveallmfg.com

Previous applications include: Large Wire Winding and Roll Forming

Weight: 0.00 LBS

More Views

Horsepower and Torque Rating
Input Speed	Max. Input Hp*	Max. Input Torque
100	10.00	9125
200	20.00	8550
300	30.00	7975
400	40.00	7400
500	50.00	6825
600	54.00	6250
700	58.00	5675
800	62.00	5100
900	66.00	4780
1000	70.00	4460
1100	71.25	4140
1200	72.50	3820
1300	73.75	3500
1400	75.00	3360
1500	76.25	3220
1600	77.50	3080
1700	78.75	2940
1800	80.00	2800

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
