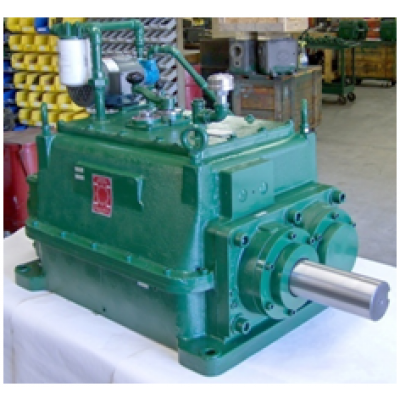

S0007

The S0007 Series is a member of the Hi-Torque family of Drive-All Gearboxes. This gearbox offers a split housing, a parallel shaft configuration, and the ability to be an increaser or reducer. It also offers design flexibility with its wide horsepower capability range. The S0007 is considered a custom design unit and can provide 1 to 4 different speeds. If you would like additional information about the S0007 please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at:www.driveallmfg.com

Previous applications include: Wire Winding, Roll Forming, and Tube Mftg.


Weight: 0.00 LBS

S0007

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

31.67

27000

200

63.33

24000

300

95.00

22000

400

116.00

20000

500

137.00

18800

600

158.00

17600

700

173.00

16400

800

188.00

15200

900

195.34

14000

1000

202.67

13200

1100

210.00

12400

1200

213.34

11600

1300

216.67

10800

1400

220.00

10000

1500

222.50

9500

1600

225.00

9000

1700

227.50

8500

1800

230.00

8000

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
