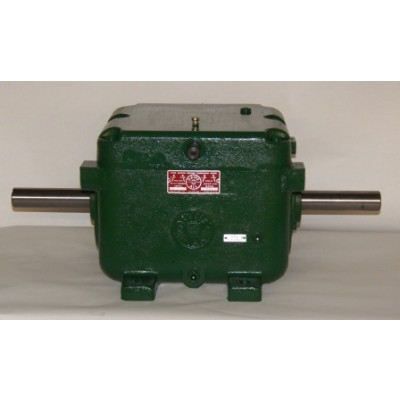

F1000STD

(Ratios = 1:1,1.686:1,3.092:1,6.398:1)

(Input Shaft Diameter = 1.500” - Output Shaft Diameter = 1.500”)

The F1000STD is a popular option in the low profile series due to its compact stature and horsepower capabilities. It is less than 11” tall, is assembled with a close grain cast iron housing, and is capable of transmitting up to 30 horsepower at 1800 rpm. The F1000STD offers 4 different speeds and the handle can be attached to either side. The shafts of the F1000STD rotate in the same direction and the unit can be utilized as an increaser or reducer. If you would like additional information about the F1000STD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at:www.driveallmfg.com

Previous applications include: Mining Industry and Fabric Winding

Weight: 225.00 LBS

$5,792.06

Request For Quote

More Views

Horsepower and Torque Rating
Input Speed	Max. Input Hp*	Max. Input Torque
100	1.67	1311
200	3.33	1297
300	5.00	1283
400	6.67	1269
500	8.34	1256
600	10.00	1242
700	11.67	1228
800	13.34	1214
900	15.00	1200
1000	16.67	1186
1100	18.34	1172
1200	20.00	1158
1300	21.67	1144
1400	23.34	1131
1500	25.01	1117
1600	26.67	1103
1700	28.34	1089
1800	30.00	1075

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
