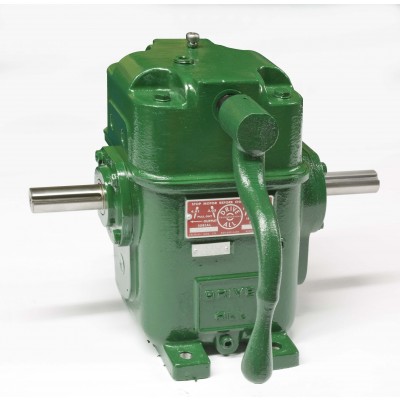

U0200-2385

(Ratios = 1:1,2.000:1,4.000:1,6.000:1)
(Input Shaft Diameter = 1.00” - Output Shaft Diameter = 1.00”)

The U0200-2385 shares the same lightweight aluminum alloy casing as the more popular U0200STD model. The difference between the two models is the ratios and the vent position on the top. The U0200-2385 offers a compact footprint and can transmit up to 2 Horsepower at 1800 rpm. This model offers 4 different speeds, has an overall length less than 15” with a width just over 9”, and the handle can be installed on either side. The shafts of the U0200-2385 rotate in the same direction and the unit can be utilized as an increaser or reducer. If you would like additional information about the U0200-2385 please contact a Drive-All Sales Engineers at 800-689-3400.

Previous applications include: Portable Wire Winders, Fish Hatcheries, Bulk Food Processing, and Insulation Blowers


Weight: 42.00 LBS
$2,387.44

U0200-2385

More Views

  • U0200-2385

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

0.57

375

200

1.14

350

300

1.71

325

400

2.00

300

500

2.00

252

600

2.00

210

700

2.00

180

800

2.00

158

900

2.00

140

1000

2.00

126

1100

2.00

115

1200

2.00

105

1300

2.00

97

1400

2.00

90

1500

2.00

84

1600

2.00

79

1700

2.00

74

1800

2.00

70

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
