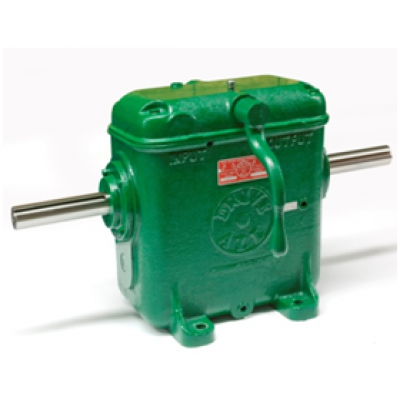

U1000STD

(Ratios = 1:1,1.686:1,3.092:1,6.398:1)
(Input Shaft Diameter = 1.500” - Output Shaft Diameter = 1.500”)

The U1000STD is assembled with a close grain cast iron housing and is capable of transmitting up to 30 horsepower at 1800 rpm. This model offers 4-different speeds, an overall length less than 27.5” with a width just over 12.25” and the handle can be attached to either side. The shafts of the U1000STD rotate in the same direction and the unit can be utilized as an increaser or reducer. If you would like additional information about the U1000STD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at: www.driveallmfg.com

Previous applications include: Wire Winding and Scrap Winders


Weight: 190.00 LBS
$4,099.98

U1000STD

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

1.67

1317

200

3.33

1308

300

5.00

1300

400

6.67

1292

500

8.34

1283

600

10.00

1275

700

11.67

1267

800

13.34

1258

900

15.00

1250

1000

16.67

1242

1100

18.34

1233

1200

20.00

1225

1300

21.67

1217

1400

23.34

1208

1500

25.01

1200

1600

26.67

1192

1700

28.34

1183

1800

30.00

1175

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
