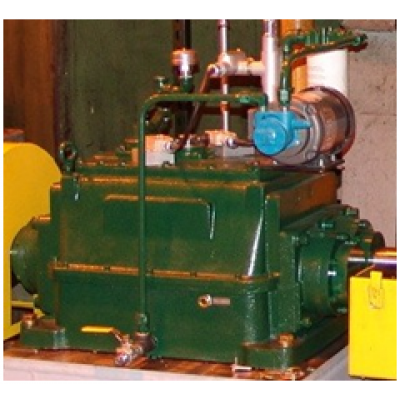

S0552

The S0552 Series is a member of the Hi-Torque family of Drive-All Gearboxes. This gearbox offers a split housing, a parallel shaft configuration, and the ability to be an increaser or reducer. It also offers design flexibility with its wide horsepower capability range. The S0552 is considered a custom design unit and can provide 1 to 2 different speeds. If you would like additional information about the S0552 please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at:www.driveallmfg.com

Previous applications include: Wire Winding, Roll Forming, and Tube Mftg.


Weight: 0.00 LBS

S0552

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

20.00

17750

200

40.00

16000

300

60.00

15000

400

80.00

14000

500

100.00

13200

600

108.57

12400

700

117.14

11600

800

125.71

10800

900

134.28

10000

1000

142.85

9500

1100

151.42

9000

1200

159.99

8500

1300

162.00

8000

1400

166.00

7500

1500

170.00

7250

1600

174.00

7000

1700

178.00

6750

1800

182.00

6500

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
