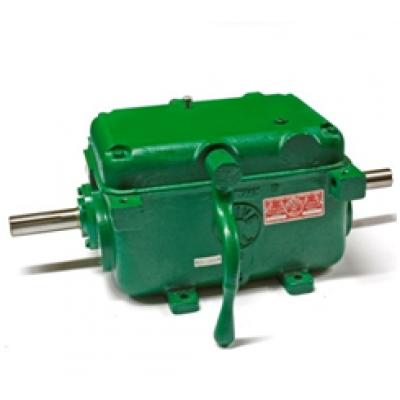

F0200STD

(Ratios = 1:1,1.824:1,3.039:1,4.012:1)

(Input Shaft Diameter = 1.00” - Output Shaft Diameter = 1.00”)

The F0200STD is the smallest of the Low Profile models. It offers a shorter profile so it can fit in tight spaces and can transmit up to 2 Horsepower at 1800 rpm. It is assembled with a close grain cast iron housing and is less than 8 ¼” tall. It offers 4 different speeds and the handle can be attached on either side. The shafts of the F0200STD rotate in the same direction and the unit can be utilized as an increaser or reducer. If you would like additional information about the F0200STD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at: www.driveallmfg.com

Previous applications include: Portable Wire Winders, Fish Hatcheries, Bulk Food Processing, and Insulation Blowers

Weight: 75.00 LBS

$4,195.69

Request For Quote

More Views

Horsepower and Torque Rating
Input Speed	Max. Input Hp*	Max. Input Torque
100	0.57	375
200	1.14	350
300	1.71	325
400	2.00	300
500	2.00	252
600	2.00	210
700	2.00	180
800	2.00	158
900	2.00	140
1000	2.00	126
1100	2.00	115
1200	2.00	105
1300	2.00	97
1400	2.00	90
1500	2.00	84
1600	2.00	79
1700	2.00	74
1800	2.00	70

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
