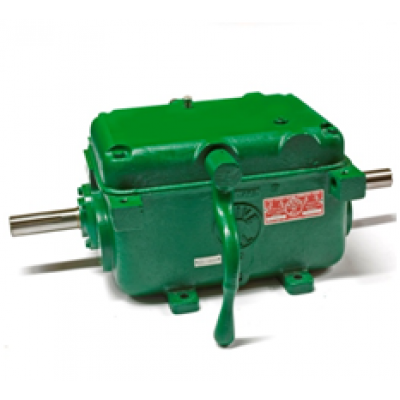

F0500HD

(Ratios = 1:1,1.824:1,3.039:1,4.012:1)
(Input Shaft Diameter = 1.250” - Output Shaft Diameter = 1.375”)

The F0500HD is less than 9” tall and is designed to fit in to smaller spaces. This model is assembled with a close grain cast iron housing and is capable of transmitting up to 10 horsepower at 1800 rpm. The F0500HD offers 4 different speeds and the handle can be attached to either side. The shafts of the F0500HD rotate in the same direction and the unit can be utilized as an increaser or reducer. If you would like additional information about the F0500HD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive All web-site at:www.driveallmfg.com

Previous applications include: Mining Industry, Fabric Winding, Turn Table Machinery, and Wire Winding


Weight: 0.00 LBS
$4,351.76

F0500HD

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

0.56

586

200

1.11

572

300

1.67

558

400

2.22

544

500

2.78

531

600

3.34

517

700

3.89

503

800

4.45

489

900

5.00

475

1000

5.56

461

1100

6.12

447

1200

6.67

433

1300

7.23

419

1400

7.78

406

1500

8.34

392

1600

8.90

378

1700

9.45

364

1800

10.00

350

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
