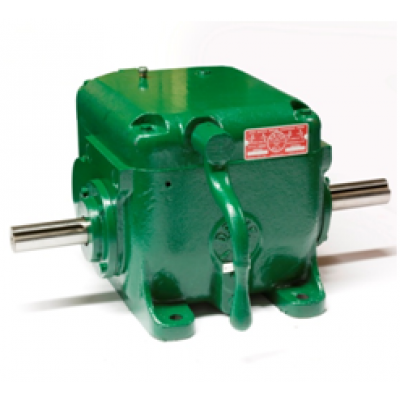

F0800STD

(Ratios = 1:1,1.686:1,3.092:1,6.398:1)
(Input Shaft Diameter = 1.375” - Output Shaft Diameter = 1.500”)

The F0800STD is the most popular of the low profile series due to its compact stature and horsepower capabilities. It is less than 11” tall, is assembled with a close grain cast iron housing, and is capable of transmitting up to 20 horsepower at 1800 rpm. The F0800STD offers 4 different speeds and the handle can be attached to either side. The shafts of the F0800STD rotate in the same direction and the unit can be utilized as an increaser or reducer. If you would like additional information about the F0800STD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at: www.driveallmfg.com

Previous applications include: Mining Industry and Fabric Winding


Weight: 175.00 LBS
$5,476.91

F0800STD

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

1.80

938

200

3.60

925

300

5.40

913

400

7.20

900

500

9.01

888

600

10.03

875

700

11.06

863

800

12.09

850

900

13.12

838

1000

14.15

825

1100

15.17

813

1200

16.20

800

1300

17.23

788

1400

18.24

775

1500

18.68

763

1600

19.12

750

1700

19.56

738

1800

20.00

725

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
