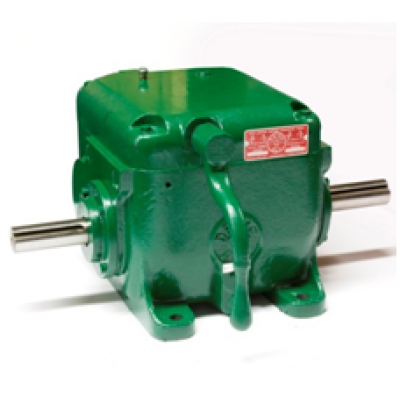

F1050STD

(Ratios = 1:1,1.686:1,3.092:1,6.398:1)
(Input Shaft Diameter = 2.00” - Output Shaft Diameter = 2.00”)

The F1050STD is less than 11” tall, is assembled with a close grain cast iron housing, and is capable of transmitting up to 50 horsepower at 1800 rpm. The F1050STD offers 4 different speeds and the handle can be attached to either side. The shafts of the F1050STD rotate in the same direction and the unit can be utilized as an increaser or reducer. If you would like additional information about the F1050STD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at:www.driveallmfg.com

Previous applications include: Large Wire Winding and Roll Forming


Weight: 250.00 LBS
$5,757.05

F1050STD

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

2.78

200

5.56

300

8.33

400

11.11

500

13.89

600

16.67

700

19.45

800

22.22

900

25.00

1000

27.78

1100

30.56

1200

33.34

1300

36.11

1400

38.89

1500

41.67

1600

44.45

1700

47.23

1800

50.00

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
