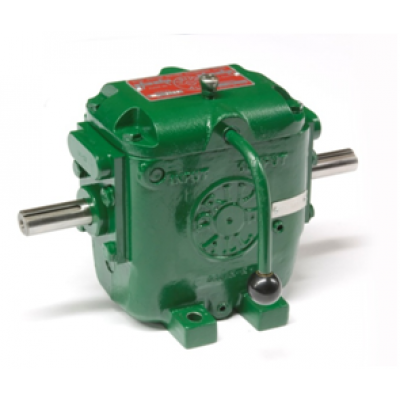

U0100STD

(Ratios = 1:1,1.722:1,2.985:1,4.054:1)
(Input Shaft Diameter = .75” - Output Shaft Diameter = .75”)

First in our series of Upright Models is the U0100STD. This compact model is capable of fractional to 1 horsepower. It is the smallest of the standard models in physical stature with an overall length less than 12” and a width just over 5”. This model offers 4 different speeds and the housing is cast with light weight aluminum alloy. If you would like additional information about the U0100STD please contact a Drive-All Sales Engineers at 800-689-3400 or visit the Drive-All web-site at: www.driveallmfg.com

Previous Applications Include: Radar Tower Positioning and Printing Machines


Weight: 17.00 LBS
$1,549.00

U0100STD

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

0.09

200

0.18

300

0.27

400

0.36

500

0.45

600

0.53

700

0.62

800

0.71

900

0.80

1000

0.89

1100

0.98

1200

1.00

1300

1.00

1400

1.00

1500

1.00

1600

1.00

1700

1.00

1800

1.00

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
