U0500-0936

(Ratios = 1:1,2.000:1,4.000:1,6.000:1)

(Input Shaft Diameter = 1.250” - Output Shaft Diameter = 1.250”)

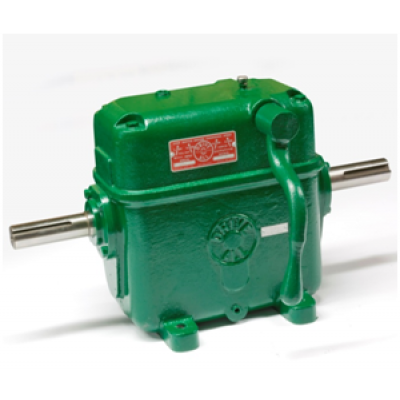

The U0500-0936 from the outside appears to be the same as the U0500STD. These two models share the same close grain cast iron housing but are very different on the inside. These two models have the same power capabilities (up to 5 horsepower at 1800 rpm) but the U0500-0936 offers a different set of solutions for our customers due to its output ratios. The U0500-0936 offers 4 different speeds, an overall length less than 21.5” with a width of just over 9”, and the handle can be attached to either side. The shafts of the U0500-0936 rotate in the same direction and the unit can be utilized as an increaser of reducer. If you would like additional information about the U0500-0936 please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site atwww.driveallmfg.com

Previous applications include: Mining Industry, Fabric Winding, Turn Table Machinery, and Wire Winding

Weight: 100.00 LBS

$2,473.89

Request For Quote

More Views

Horsepower and Torque Rating
Input Speed	Max. Input Hp*	Max. Input Torque
100	0.56	579
200	1.11	557
300	1.67	536
400	2.22	514
500	2.78	493
600	3.34	472
700	3.89	450
800	4.45	400
900	5.00	350
1000	5.00	315
1100	5.00	286
1200	5.00	263
1300	5.00	242
1400	5.00	225
1500	5.00	210
1600	5.00	197
1700	5.00	185
1800	5.00	175

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
