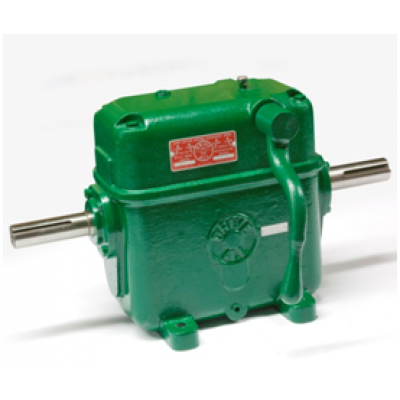

U0500HD-0936

(Ratios = 1:1,2.000:1,4.000:1,6.000:1)
(Input Shaft Diameter = 1.250” - Output Shaft Diameter = 1.375”)

The U0500HD-0936 is very similar to the U0500-0936. These two models share the same close grain cast iron housing and offer the same output ratios. The U0500HD-0936 has a larger diameter output shaft and is designed to transmit up to 10 horsepower at 1800 rpm. The U0500HD-0936 offers 4 different speeds, an overall length less than 21.5” with a width just over 9”, and the handle can be attached to either side. The shafts of the U0500HD-0936 rotate in the same direction and this unit can be utilized as an increaser or reducer. If you would like additional information about the U0500HD-0936 please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at: www.driveallmfg.com

Previous applications include: Mining Industry, Fabric Winding, Turn Table Machinery, and Wire Winding


Weight: 100.00 LBS
$2,118.69

U0500HD-0936

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

0.56

200

1.11

300

1.67

400

2.22

500

2.78

600

3.34

700

3.89

800

4.45

900

5.00

1000

5.56

1100

6.12

1200

6.67

1300

7.23

1400

7.78

1500

8.34

1600

8.90

1700

9.45

1800

10.00

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
