U0500HD

(Ratios = 1:1, 1.824:1, 3.039:1, 4.012:1)
(Input Shaft Diameter = 1.250” - Output Shaft Diameter = 1.375”)

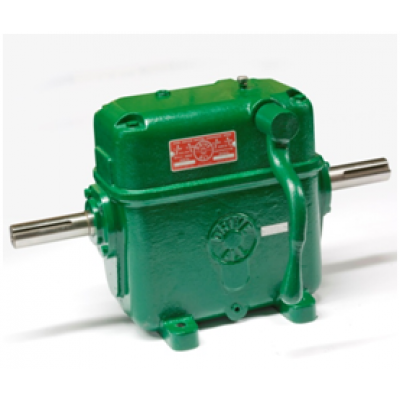

The U0500HD is very similar to the U0500STD. These two models share the same close grain cast iron housing and offer the same output ratios. The U0500HD has a larger diameter output shaft and is designed to transmit up to 10 horsepower at 1800 rpm. The U0500HD offers 4 different speeds, and overall length less than 21.5” with a width just over 9”, and the handle can be attached to either side. The shafts of the U0500HD rotate in the same direction and this unit can be utilized as an increaser or reducer. If you would like additional information about the U0500HD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at:www.driveallmfg.com

Previous applications include: Mining Industry, Fabric Winding, Turn Table Machinery, and Wire Winding


Weight: 100.00 LBS
$2,239.49

U0500HD

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

0.56

586

200

1.11

572

300

1.67

558

400

2.22

544

500

2.78

531

600

3.34

517

700

3.89

503

800

4.45

489

900

5.00

475

1000

5.56

461

1100

6.12

447

1200

6.67

433

1300

7.23

419

1400

7.78

406

1500

8.34

392

1600

8.90

378

1700

9.45

364

1800

10.00

350

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
Catalog Horsepower Calculator
