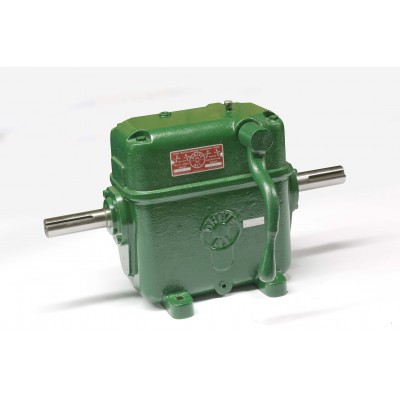

U0500STD

(Ratios = 1:1, 1.824:1, 3.039:1, 4.012:1)
(Input Shaft Diameter = 1.250” - Output Shaft Diameter = 1.250”)

The U0500STD is the model that started it all over 70 years ago. This model is as-sembled with a close grain cast iron housing and is capable of transmitting up to 5 horsepower at 1800 rpm. The U0500STD offers 4 different speeds, an overall length less than 21.5” with a width just over 9”, and the handle can be attached to either side. The shafts of the U0500STD rotate in the same direction and the unit
can be utilized as an increaser or reducer. If you would like additional information about the U0500STD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at: www.driveallmfg.com

Previous applications include: Mining Industry, Fabric Winding, Turn Table Machinery, and Wire Winding


Weight: 100.00 LBS
$1,849.98

U0500STD

More Views

  • U0500STD

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

0.56

200

1.11

300

1.67

400

2.22

500

2.78

600

3.34

700

3.89

800

4.45

900

5.00

1000

5.56

1100

6.12

1200

6.67

1300

7.23

1400

7.78

1500

8.34

1600

8.90

1700

9.45

1800

10.00

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
