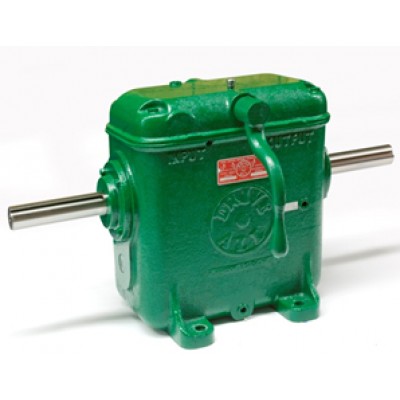

U1050STD

(Ratios = 1:1, 1.686:1, 3.092:1, 6.398:1)
(Input Shaft Diameter = 2.00" - Output Shaft Diameter = 2.00")

The U1050STD is the largest of the upright models. It is assembled with a close grain cast iron housing and is capable of transmitting up to 50 horsepower at 1800 rpm. This model offers 4-different speeds, an overall length less than 29” with a width just over 12.25”, and the handle can be attached to either side. The shafts of the U1050STD rotate in the same direction and the unit can be utilized as an increaser or reducer. If you would like additional information about the U1050STD please contact a Drive-All Sales Engineer at 800-689-3400 or visit the Drive-All web-site at: www.driveallmfg.com

Previous application include: Large Wire Winders and Roll Forming


Weight: 215.00 LBS
$6,099.98

U1050STD

More Views

Horsepower and Torque Rating

Input Speed

*Max. Input Hp**

Max. Input Torque

100

2.78

2224

200

5.56

2197

300

8.33

2171

400

11.11

2144

500

13.89

2118

600

16.67

2092

700

19.45

2065

800

22.22

2039

900

25.00

2012

1000

27.78

1986

1100

30.56

1960

1200

33.34

1933

1300

36.11

1907

1400

38.89

1881

1500

41.67

1854

1600

44.45

1828

1700

47.23

1801

1800

50.00

1775

*All gearboxes are rated at 1800 rpm
** Excessive overhung load can dramatically affect gearbox capabilities and performance
